Deciphering IEEE 32 vs. IEC Standards: Is Your Neutral Grounding Resistor (NGR) Compliant?

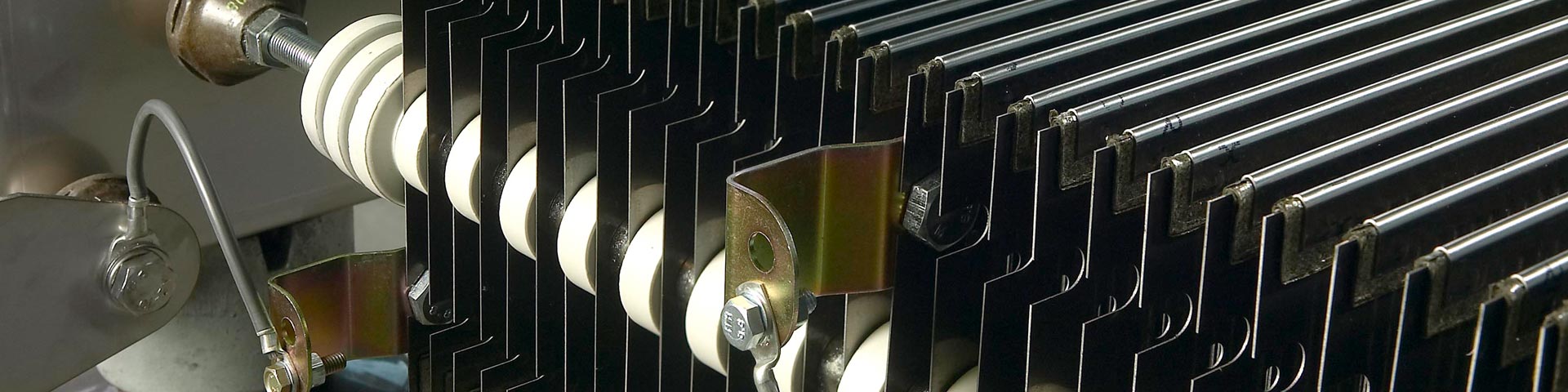

Neutral Grounding Resistors (NGRs) are critical safety components in industrial and utility power systems. By limiting single-phase-to-ground fault currents, they reduce arcing damage, suppress transient overvoltages, and ensure system stability. However, global projects often face conflicting engineering specifications due to differences between North American (IEEE) and European/International (IEC) standards.

Understanding IEEE Std 32 (specifically IEEE C57.32a) and IEC 60076-25 allows engineers to select the appropriate NGR for specific medium-voltage applications.

Core Standard Comparison: IEEE 32 vs. IEC 60076-25

The main distinction between IEEE and IEC standards lies in thermal duty ratings and allowable temperature rises.

IEEE C57.32 (formerly IEEE 32): Standardizes time ratings into 10-second, 1-minute, 10-minute, and continuous duties. For standard 10-second short-time duty, the maximum allowable temperature rise for stainless steel elements is 760°C.

IEC 60076-25: Focuses on ambient baseline thermal stress and systemic insulation coordination. It typically caps temperature rises depending on element metallurgy and housing ventilation class (IP ratings), favoring conservative thermal margins (often 610°C to 760°C max).

Technical Parameter	IEEE C57.32 Standard	IEC 60076-25 Standard
Primary Reference	IEEE C57.32a-2020	IEC 60076-25:2023
Rated Short-Time Duration	10 s, 1 min, 10 min	Custom / 10 s, 30 s, 60 s
Max Temp Rise (10s Duty)	760 °C (Stainless Steel)	610 °C – 760 °C (material dependent)
Continuous Rating Margin	Typically 5%–10% of short-time rating	Rated continuous current (Icont)
Enclosure Ingress Protection	NEMA Type 1, 3R, 4, 4X	IP23, IP33, IP54, IP55
Dielectric Testing	Applied HV power frequency test	Power frequency + Lightning Impulse (BIL)

Key Formulas for NGR Sizing

To size an NGR correctly, calculate the system line-to-neutral voltage (V_LN ), required ground fault current (I_NGR), target resistance (R), and energy absorption capacity (E).

Phase Voltage: V_LN = V_LL / √3

Resistance Value: R = V_LN  / I_NGR

Active Thermal Power: P = I²_NGR · R = V_LN  · I_NGR

Total Energy Absorbed (Joules): E = P · t = I²_NGR  · R · t

(Where V_LL is line-to-line system voltage, I_NGR is target fault current, and t is duration in seconds.)

Application Scenarios & Selection Principles

1. High-Resistance Grounding (HRG): I_NGR ≤ 10 A

Target Application: Process industries (chemical plants, paper mills) requiring maximum process continuity.

Selection Principle: I_NGR must exceed the total system capacitive charging current (I_C). High-Resistance Grounding suppresses transient overvoltages without tripping the system on the first ground fault.

Duty: Continuous duty (100% rated time).

2. Low-Resistance Grounding (LRG): I_NGR = 100 A to 1000 A

Target Application: Distribution substations, large motor drives, and medium-voltage generation networks.

Selection Principle: Limits fault current enough to prevent core-lamination damage in transformers/generators, while providing sufficient current to trigger protective relays (51N/50N).

Duty: Short-time (typically 10 seconds per IEEE 32).

Engineering Calculation Examples

Case 1: 11 kV Substation Power Transformer NGR Selection

System Parameters:

System Voltage (V_LL): 11 kV

System Configuration: Star-connected 11 kV secondary winding

Desirable Fault Current (I_NGR): 400 A

Protection Trip Time: Breaker trips within 0.5 s (10-second rating selected for backup coordination safety)

Calculations:

Calculate Line-to-Neutral Voltage:

V_LN  = 11000 V / √3 ≈ 6351 V

Calculate Nominal Resistance:

R = 6351 V / 400 A = 15.88 Ω

Calculate Thermal Power & Energy Capacity:

P = 6351 V × 400 A = 2.54 MW

E = 2.54 MW × 10 s = 25.4 MJ

Recommended Specification:

Voltage Rating: 6.35 kV continuous / 11 kV insulation class

Resistance: 15.88 Ω (± 5%) at 20°C

Fault Current: 400 A for 10 seconds

Standard Compliance: IEEE C57.32 (760°C max rise) or IEC 60076-25

Enclosure Rating: IP55 / NEMA 3R Outdoor Stainless Steel Grade 304

Case 2: 13.8 kV Generator Neutral Grounding (Hybrid/High-Resistance System)

System Parameters:

Generator Output (V_LL): 13.8 kV

System Capacitive Charging Current (I_C): 2.2 A

Objective: Prevent stator iron damage during internal ground faults using HRG.

Calculations:

Calculate Line-to-Neutral Voltage:

V_LN  = 13800 V / √3 ≈ 7967 V

Determine Target Grounding Current:

To suppress transient overvoltages, set I_NGR > I_C. Choose I_NGR = 5 A.

Calculate Resistance Value:

R = 7967 V / 5 A = 1593.4 Ω

Calculate Continuous Power Rating:

Pcont = I²_NGR × R = (5 A)² × 1593.4 Ω = 39.84 kW

Recommended Specification:

Voltage Rating: 7.97 kV

Resistance: 1593.4 Ω (± 5%)

Current Rating: 5 A Continuous Duty

Thermal Dissipation Limit: Continuous temperature rise < 380°C per IEEE 32

Accessories: Includes integrated Current Transformer (CT), anti-condensation space heater, and pulsing relay circuit for ground fault location tracing.

Summary Checklist for Compliance

When specifying or auditing an NGR unit for international projects, verify that:

Duty Cycle matches tripping logic (10s for LRG vs. Continuous for HRG).

Temperature Rise Limits correspond strictly to the referenced standard (IEEE 32 vs. IEC).

Enclosure Protection matches ambient conditions (IP rating vs. NEMA rating).

Insulation BIL Class matches or exceeds system BIL requirements for line-to-neutral exposure.
