What Are the Routine and Type Tests for a Transformer Neutral Grounding Resistor (NGR)?

Writer： admin Time：2026-10-19 14:20:07 Browse：55℃

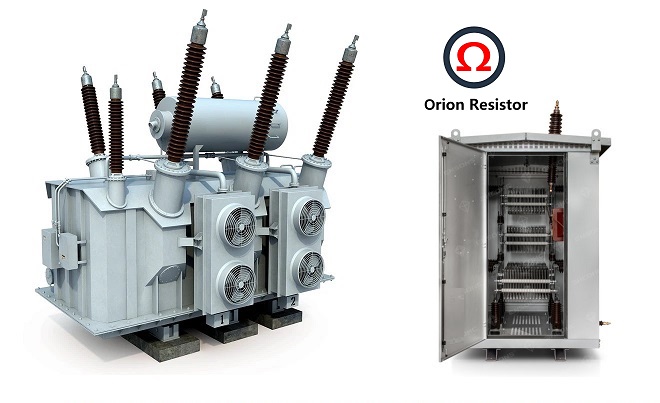

A transformer neutral grounding resistor (NGR) is an essential component of power system protection. It limits single-line-to-ground fault current, reduces the risk of equipment damage, and enables protection relays to detect ground faults reliably. To ensure proper operation, the NGR must meet specified requirements for resistance, insulation, thermal capacity, and electrical connections.

For transformer manufacturers, EPC contractors, electrical engineers, and procurement specialists, understanding the differences between routine tests and type tests is important when preparing technical specifications, evaluating factory acceptance test (FAT) reports, and verifying equipment reliability.

IEEE C57.32, Standard for Requirements, Terminology, and Test Procedures for Neutral Grounding Devices, is a key reference for NGR testing in North American applications. The applicable edition, amendments, and project-specific requirements should be confirmed before establishing the test procedure.

1. Routine Tests vs. Type Tests

Routine tests are performed on individual manufactured units to verify that each NGR meets the specified electrical and construction requirements. Type tests demonstrate that a particular design can withstand its rated electrical, thermal, and environmental stresses.

Item	Routine Tests	Type Tests
Purpose	Verify individual manufactured units	Validate the equipment design
Test frequency	Normally performed on each unit as specified	Usually performed on a representative design
Main focus	Resistance, insulation, wiring, and construction	Temperature rise, short-time current withstand, and design-dependent performance
Documentation	Individual test report and FAT records	Type-test report or approved design qualification
Acceptance basis	Purchase specification and applicable standards	Design ratings and applicable standard requirements

The classification of individual tests depends on the applicable standard, NGR design, project specification, and approved inspection and test plan. Not every test described below is mandatory for every NGR assembly.

2. Routine Tests for Transformer NGRs

2.1 Resistance Measurement

Resistance measurement is one of the most important routine tests because it determines the ground-fault current that the NGR will permit under the specified system conditions.

For a resistance-grounded transformer neutral, the required resistance can be calculated using the following equation:

R = Vph / Ig = VLL / (√3 × Ig)

Where R is the required resistance in ohms, Vph is the phase-to-neutral voltage, VLL is the line-to-line voltage, and Ig is the specified ground-fault current.

For example, consider a 13.8 kV system with a specified ground-fault current of 400 A.

R = 13,800 / (√3 × 400) = 19.92 Ω

The nominal resistance is approximately 19.92 Ω, subject to the specified tolerances and grounding system design.

During factory testing, the manufacturer should record the measured resistance, test temperature, measurement method, and acceptance limits. Because metallic resistor elements change resistance with temperature, results should be compared at a defined reference temperature or corrected according to the manufacturer's approved procedure.

2.2 Insulation Resistance Test

The insulation resistance test evaluates the insulation between the resistor circuit and the grounded enclosure, frame, or other specified points.

The test voltage should be selected according to the equipment's insulation rating, the applicable standard, and the manufacturer's instructions. The test procedure should specify the measurement points, applied voltage, test duration, and minimum acceptable resistance.

This test helps identify insulation deterioration, moisture ingress, contamination, and unintended conductive paths. However, a satisfactory insulation resistance result does not replace a dielectric withstand test when the latter is required.

2.3 Dielectric Withstand Test

The dielectric withstand test verifies that the insulation system can tolerate the prescribed test voltage without breakdown or flashover.

The appropriate test voltage and duration depend on the rated insulation level, equipment configuration, applicable standard, and approved test procedure. A universal test voltage should not be applied to every NGR design.

The test report should document the applied voltage, duration, test connections, and whether any breakdown or flashover occurred. The test arrangement must also account for connected monitoring devices and auxiliary circuits that may require isolation or separate testing.

2.4 Visual and Mechanical Inspection

Visual and mechanical inspection verifies the overall quality of the NGR assembly before shipment.

The inspection should cover resistor elements, support insulators, terminal connections, enclosure integrity, ventilation openings, grounding terminals, cable entries, corrosion protection, and nameplate information.

For outdoor installations, particular attention should be given to weather protection, drainage, corrosion resistance, and ventilation. The nameplate should clearly identify the specified resistance, rated ground-fault current, fault duration, voltage rating, and other required technical parameters.

Loose connections, damaged insulators, inadequate clearances, or incorrect nameplate information should be corrected before the equipment is accepted.

2.5 Auxiliary Circuit and Functional Checks

Some NGR assemblies include neutral grounding resistor monitors, current transformers, temperature switches, alarm contacts, or control circuits. These components should be checked according to the approved FAT procedure.

Typical checks include wiring continuity, terminal identification, CT polarity where applicable, alarm contact operation, resistor continuity monitoring, and loss-of-grounding alarms.

Where specified, functional testing should confirm that monitoring signals are correctly transmitted to the protection or supervisory control system.

A satisfactory resistance measurement alone does not prove that the complete grounding protection system will operate correctly.

3. Type Tests for Transformer NGRs

Type tests demonstrate that the NGR design can withstand the electrical and thermal stresses associated with its rated operating conditions. The required test program depends on the design and contractual requirements.

3.1 Temperature Rise Test

During a ground fault, the NGR converts electrical energy into heat. The temperature rise test evaluates whether the resistor elements and associated components can withstand the specified fault current for the rated duration.

The energy dissipated during a resistive fault can be estimated using the following equation:

E = I² × R × t

Where E is the dissipated energy in joules, I is the fault current in amperes, R is the resistance in ohms, and t is the fault duration in seconds.

Consider an NGR rated at 400 A, 19.92 Ω, and 10 seconds.

E = 400² × 19.92 × 10 = 31.87 MJ

The resistor must therefore handle approximately 31.87 MJ of electrical energy during the specified fault, assuming constant current and resistance.

This calculation illustrates why fault duration is a critical design parameter. Actual temperature rise depends on resistor material, element geometry, thermal mass, heat transfer, initial temperature, and temperature-dependent resistance.

The test should follow the applicable standard and approved procedure, with acceptance criteria covering temperature rise or maximum permissible temperatures as appropriate to the design.

3.2 Short-Time Current Withstand Test

The short-time current withstand test verifies that the resistor elements, terminals, conductors, and supporting structures can tolerate the specified ground-fault current for the rated duration without unacceptable damage.

Depending on the applicable standard and approved test plan, verification may involve direct current testing or an accepted design qualification method.

Following the test, the manufacturer should assess resistance changes, mechanical deformation, connection integrity, insulation condition, and any other specified acceptance criteria.

This test is particularly important for installations where high fault currents may occur before the protection system clears the fault.

3.3 Environmental and Enclosure Verification

Outdoor NGRs may require design verification for enclosure protection, corrosion resistance, ambient temperature, humidity, altitude, and other environmental conditions.

The applicable tests depend on the enclosure design, installation environment, and project requirements. For example, an IP rating should be supported by the appropriate test or valid qualification evidence rather than visual inspection alone.

Where an NGR is installed in coastal, mining, chemical processing, or other demanding environments, material selection and corrosion protection should receive particular attention.

3.4 Additional Design-Specific Tests

Depending on the NGR configuration, the design qualification program may also address insulation coordination, mechanical integrity, thermal performance of connections, and integrated monitoring equipment.

These tests should be selected according to the equipment design, applicable standards, and project risk assessment. The purchaser should distinguish mandatory standard requirements from additional contractual requirements.

4. Case Study: Detecting an NGR Resistance Deviation Before Shipment

The following is an illustrative engineering case intended to demonstrate the value of routine testing.

A manufacturing facility specifies a transformer NGR for a 13.8 kV system, with a ground-fault current of 400 A and a fault duration of 10 seconds.

The calculated nominal resistance is approximately 19.92 Ω. During factory testing, the measured resistance is 21.0 Ω at the recorded test temperature.

The estimated ground-fault current, assuming a 13.8 kV line-to-line voltage and neglecting other circuit impedances, is:

Ig = 13,800 / (√3 × 21.0) = 379.4 A

The estimated current is approximately 5.2% below the specified 400 A.

This deviation should trigger an engineering review rather than automatic acceptance or rejection. The manufacturer should verify the specified resistance tolerance, reference temperature, measurement uncertainty, and test procedure. If the measured value remains outside the contractual acceptance range, the resistor elements, electrical connections, and assembly workmanship should be investigated before the measurement is repeated.

This example demonstrates why resistance testing is essential. An NGR may appear mechanically sound while its electrical performance differs from the intended grounding system design.

5. How to Prepare an NGR Factory Acceptance Test Checklist

For procurement teams and EPC contractors, an effective NGR FAT checklist should identify each test, the applicable acceptance criteria, the responsible party, and the required documentation.

Test Item	Required Record or Evidence
Resistance measurement	Measured resistance, test temperature, and tolerance assessment
Insulation resistance	Test voltage, duration, and measured value
Dielectric withstand	Applied voltage, duration, and pass/fail result
Visual and mechanical inspection	Inspection checklist and nameplate verification
Auxiliary circuit checks	Continuity, alarm, and contact test results
Temperature rise	Approved design test report, where applicable
Short-time current withstand	Test report or accepted design verification
Enclosure and environmental verification	Applicable qualification evidence, where required

Before issuing a purchase order, the purchaser should define the rated ground-fault current, resistance, fault duration, insulation level, installation environment, monitoring requirements, applicable standards, FAT witness points, and documentation requirements.

The technical specification should also clarify which tests must be witnessed by the purchaser or a third-party inspector and which may be verified through approved reports.

Conclusion

Routine and type tests serve complementary purposes in ensuring transformer NGR reliability. Routine tests verify the resistance, insulation, construction, and specified auxiliary functions of each manufactured unit. Type tests establish that the design can withstand its intended thermal, electrical, and environmental stresses.

For engineers and procurement professionals, the most important principle is to connect every test to a defined rating and acceptance criterion. Resistance, fault current, and fault duration must agree with the grounding study, while insulation and thermal performance must be supported by appropriate test evidence.

A clearly defined FAT procedure, a suitable type-test program, and complete documentation help reduce commissioning risks, prevent acceptance disputes, and provide greater confidence in the long-term performance of transformer neutral grounding resistors.
