Why Don't We Solidly Ground a Giant Generator?

Writer： admin Time：2026-03-16 18:21:07 Browse：1℃

In a power plant, the generator is the most expensive "spinning" asset. If an insulation failure occurs inside the stator (a ground fault), the goal isn't just to trip the breaker—it’s to save the iron.

1. The Core Strategy: Damage Control

In a typical distribution system, we often use solid grounding. But if a 500MW generator were solidly grounded:

• The Disaster: A ground fault would trigger tens of thousands of Amps. This massive energy would instantly melt the stator winding and, more importantly, burn the stator iron laminations. Replacing a winding is expensive; repairing a melted core is a nightmare.

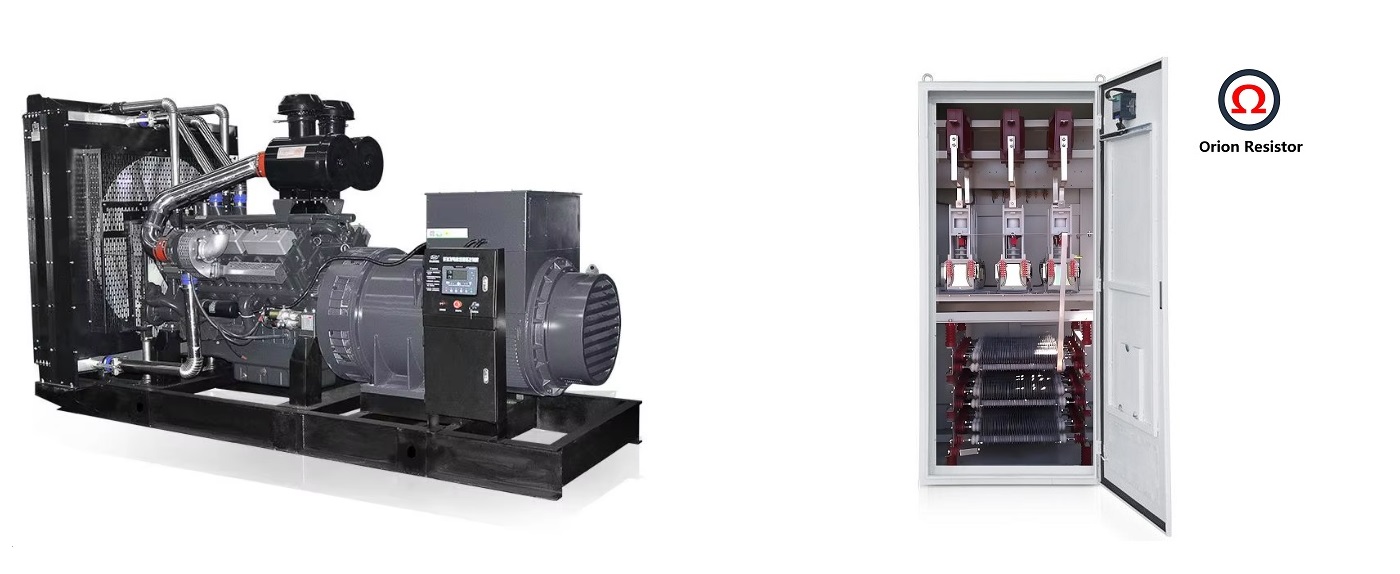

• The Solution: We use High-Impedance Grounding. By placing a distribution transformer with a resistor on its secondary at the generator's neutral, we "choke" the fault current. Instead of thousands of Amps, the fault is limited to a mere 5 to 25 Amps. This buys the protection system enough time to trip the unit without the machine exploding.

2. The Trade-off: Protection Complexity

When you limit current to such a tiny value, a standard "Overcurrent Relay" becomes useless—it simply can't "see" the fault. To fix this, we use two specialized voltage-based functions:

• 59N (Neutral Overvoltage): Under normal conditions, the neutral voltage is near zero. If a fault occurs near the generator terminals, the neutral voltage jumps up. The 59N relay detects this "Zero Sequence Voltage" and trips the unit.

• 27TN (Third Harmonic Undervoltage): The 59N has a "blind spot" near the neutral point itself. However, generators naturally produce a small amount of 3rd Harmonic voltage. If a fault occurs near the neutral, this harmonic voltage collapses (is "shorted out"). The 27TN relay notices this drop and covers the final 5% to 15% of the winding that the 59N misses.

• Result: Together, they provide 100% Stator Ground Protection.

3. The GSU: The Zero-Sequence Firewall

The Main Step-up Transformer (GSU) usually has a Delta ($\Delta$) connection on the generator side and a Grounded-Wye ($Y$) on the grid side.

• The "Block": The Delta winding acts as a physical barrier. It prevents ground faults on the high-voltage transmission lines from "leaking" into the generator's zone.

• The Benefit: This isolation ensures that the generator's sensitive ground protection only reacts to internal issues, not a lightning strike 50 miles away on the grid.

Knowledge Check: Generator Grounding

Test your understanding with these 5 questions:

1. What is the primary reason for using high-impedance grounding on a generator?

A. To increase the efficiency of power generation.

B. To limit fault current and prevent melting the stator core (iron).

C. To allow the generator to continue running during a permanent fault.

2. Why can't we use standard overcurrent relays for generator ground faults?

A. The fault current is too high for the relay to handle.

B. High-impedance grounding limits the current to a level too low for standard relays to detect.

C. Overcurrent relays only work on the transmission side.

3. Which protection function is specifically designed to cover the "blind spot" near the neutral?

A. 59N (Neutral Overvoltage)

B. 50/51 (Instantaneous Overcurrent)

C. 27TN (3rd Harmonic Undervoltage)

4. How does the GSU Delta winding benefit the generator protection scheme?

A. It steps up the voltage for transmission.

B. It blocks zero-sequence currents from the grid, isolating the generator's ground protection.

C. It provides a path for 3rd harmonics to escape.

5. If a generator was "Solidly Grounded" and experienced a stator ground fault, what would be the most likely outcome?

A. A minor repair of the insulation.

B. Massive thermal damage/melting of the stator iron core.

C. No damage, as the breaker would trip instantly.
